Once you have a setup up and running, it is very important to monitor DVB receiver statistics. You can receive alerts for triggers via Email, if configured in Zabbix.

Link to the github project: https://github.com/rafael747/zabbix-cmcs-template

Instalation

  • Make sure you have cmcs client installed and available in PATH (https://novra.com/downloads)
  • Copy/link cmcstats.sh to /usr/local/bin/cmcstats
  • Fill IP and PW info in /usr/local/bin/cmcstats
  • Copy cmcstats.conf to /etc/zabbix/zabbix_agentd.conf.d/
  • Restart zabbix-client service
  • You can test the script before adding the template to your host
1
2
3

   cmcstats SIGS   #to print Signal Strength
   cmcstats SIGL   #to print Signal Lock Status
   cmcstats        #to print all information

On Zabbix server

  • Import zbx_cmcs_template.xml in Zabbix server and add it to your host

Latest data

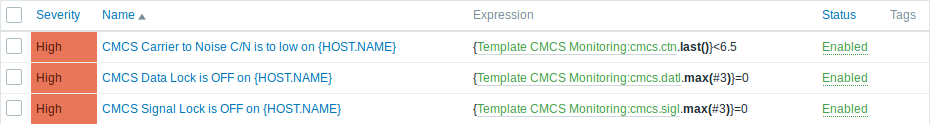

Triggers

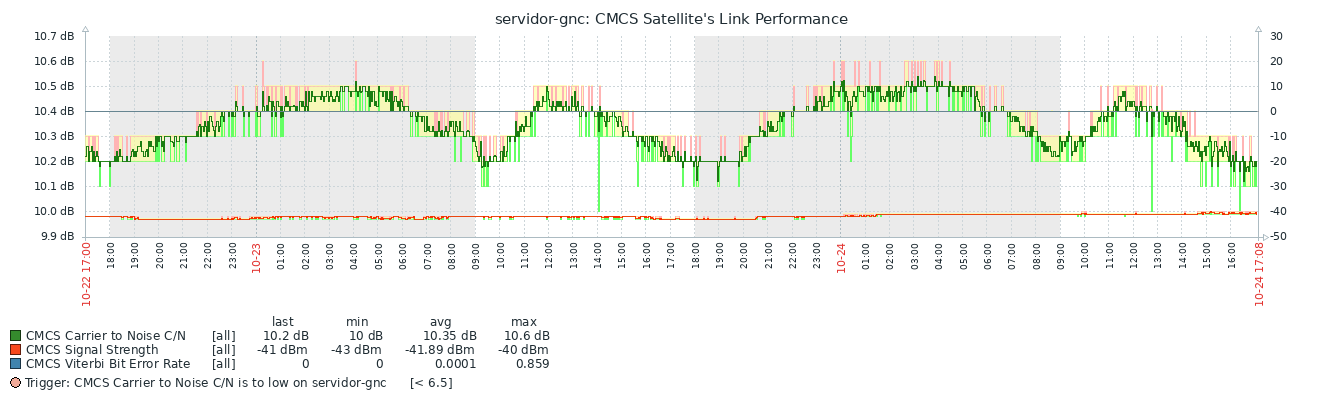

Graph
